How I made my Mogami Kyoko Prisoner Velvet Wings

I am SO LATE in doing this entry! But anyway I’m finally here to share how I did the black wings for my Mogami Kyoko cosplay of Fuwa Sho’s Prisoner PV.

Click here to view the photoshoot photos.

Firstly, it is a pair of movable Velvet wings. What do I mean by ' velvet wings' ? Basically, most of the feathers used on this pair of wings is created entirely out of Velvet. Yes that's a fabric, a cloth, not feathery at all. But I bet you wouldn't have realised / noticed it if I didn't tell you xD

(The feathers kinda came out from all the jostling and it shows in this picture ;_; )

Each single velvet feather is made individually by hand. So while it is A LOT cheaper than feathers, it is also A LOT more tedious! I eventually chose velvet over feathers not because of the cost but the advantage in storing and transporting of the prop.

IMG_7124IMG_7126

This is how the wings look laid flat on the floor and without the harness. Some feather boas are used on the top and middle part to help make everything look more realistic.

I wasn't a fan of what they describe as ' tombstone' wings. Basically cardboard wings that are flat and shaped like a tombstone. So after some anatomy research on winged animals and how other cosplayers do their wings, i came up with this simple structure. Unfortunately though, since it was my first attempt at making wings, I have to say it didn’t turn out as well as I hoped =(

IMG_5423IMG_5429

This is the harness that I wear on like a haversack. It is made of compressed wood board, pvc pipe, cable ties and hot glue, so professional I know =x And then I made a fabric tube in matching colour (of my dress) and run the fabric tube through the harness. In the 2nd photo you see me half way through spraying it black on strategic parts just in case any part of it gets seen.

IMG_5413

The internal skeleton.

IMG_5388IMG_5386
Material used for the skeleton  was this plastic rubbery tube thingy that people use with sliding glass doors. I'm sorry I don't know it's technical/official name but maybe your local DIY stores can help. I think it cost me $8 /1.5m and it was chosen for it's flexible yet sturdy nature because I think real wings should flap ahha. It is also lightweight.

The plastic can be pretty hard to bend with hands alone, so at areas that I really need it to bend at a specific angle, I melt the plastic a little with fire then sculpt it with my hands.

IMG_5411IMG_5412

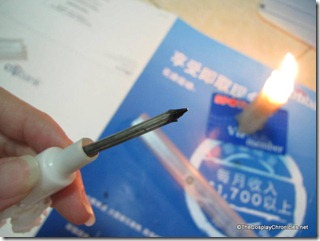

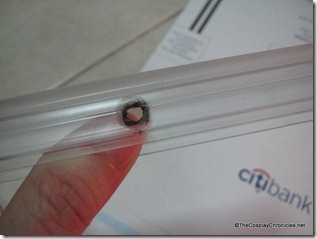

And because I wanted some parts of the plastic tube to be attached together like paper held together by paper ring, I use a heated nail to scorch a hole through it.

IMG_5426IMG_5425

Hehehe, hot glued everything Open-mouthed smile The 5 cable ties that are hot glued onto the cork board is to create loops for my fabric tubes (the thing that allows me to carry the wings like a bag and it goes around my abdominal ).

IMG_5414IMG_5419IMG_5416

Cable ties wrapped around strategic parts of the skeleton to hold the string inside it in place. Yes, I love cables ties and I’m such a kitchen cosplayer >/////<

IMG_5415

Because my main concern is on the storage and transporting of the wings, I made almost every single part of it detachable. In this pic you see the plastic tubes (the translucent one) inserted through the PVC and you might notice how it isn’t actually put together.

IMG_5407

Here, a black cable tie has been tied to hold both the tubes together. The shorter tube works as a support for the inverted ‘L’ shape and without the back cable tie, the whole structure would fail.

IMG_7127

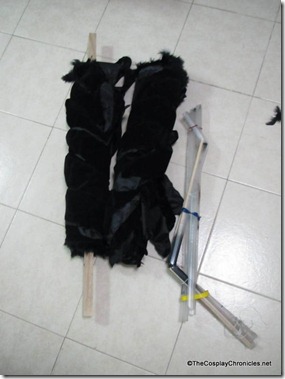

This meant I can cut the cable tie and roll everything into a convenient bundle then set it up again when I need to cosplay/shoot.

IMG_5406
This is how each wing skeleton looked like.  I recommend extending part 'A' to be longer and higher so as to create a more majestic looking pair of wings. My recommended skeleton is outlined in green.  My current one just looks a tad weak because it's not high enough=.=|||

To facilitate snaking in crowds, I made my wings 'swing-able' so I have the option of closing and opening it when I want to. As you can tell, the plastic tubings are inserted through the PVC tubes freely, this is what makes it 'swing-able'. But having swing-able wings also had it's fair share of trouble because the wings wouldn't stay still for pictures =.=;; Oh wells...

IMG_5389IMG_5391

Here’s a miniature trial version of the wings that I made to test the physics before making them in full scale. Here you can sort of see how I attached a string to strategic points of the wings and then made it go through the straw. When I pull the string through the straw, I can open the wings. So if there’s one advise I can give to any new cosplayers, that is to test and trial on inexpensive materials first before moving onto the real thing!

Check out the video above. I'm sure it would have been much better if i used pulleys or some more advanced hardware but I don't have those DIY knowledge ^^; And that pretty much sums the skeleton up.

On to the wings! The base of the wing is basically a big piece of velvet that acts as a pillow case over the skeleton.

IMG_5404

First I placed the skeleton over a big piece of Mahjong paper and drew what I visualise to be the right size and pattern of a wing. After I’m satisfied with what I see, I cut the paper out and use it as a template.

IMG_5405

Place the paper template onto the velvet and cut 2 sides for each wing. I then stapled around the edge and kind of made it into a pillow case for the skeleton. Of course, I cut 4 pieces out and made 2 sides of the wing pillows. I’m sorry if the photos don’t explain as much, I was in SUCH a rush when I made it, I didn’t have the luxury of time to snap progress photos.

Now to the feathers!

IMG_5458
To make the feather, first draw and cut out the rough shape of a feather on velvet. Then use a permanent silver marker to draw strokes that mimics real feathers on it.

IMG_5434

Here are some photos of the ‘feathers’ before they were drawn and burned.

As not all the feathers on a wing has the same size, it is essential to take note of roughly how many 'small' and 'big' feathers you will need. The actual amount of feathers needed ultimately depends on the size of your wing.

IMG_5433

In the above photo I laid my pre-burned feathers onto the paper template to better understand how many feathers I need.
IMG_5430

Later on I found out that it was easier to just draft with a slope like this and make feathers that goes from small to big progressively.

IMG_5476

Then I just burned the edges with a simple candle. Be careful while you are working with fire and becareful not to inhale too much of the toxic gas. I had to burn so much of it at one go that I even felt physically dizzy and my mom was visibly upset with me for making the whole house smell like plastic. But then my mom was nice enough to not comment too much and allow me to continue since she witnessed how much effort I poured into it.

IMG_5474IMG_5462IMG_5457

Some random photos to show off how real I thought they turned out *proud* XD.

IMG_5467

Now lay them on top of your ‘pillow case’ and glue it down with your glue of choice. I think I used UHU glue and hot glue.

 IMG_5470IMG_5473

After you are done, glue feather boa to the top edge and the side close to your back.

IMG_5479

This is how it looks like from the back, not too nice.

IMG_5480

So I cut more feathers and stuck them to the bottom area.

I forgot to take any pictures of the harness (the wooden board thingy) but I also covered it with black velvet and feather boas to make the wing look seamless.

I’m sorry if my descriptions were bad for this and I probably left out a lot of details but I hope it gives you an idea of how such wings are done. Do remember to leave me a comment and tell me what you think! This entry took my so long to put together xD
